INTEGRAL CONTROL VALVE MANIFOLDS

PacSeal Hydraulics’ patented* integral control valve manifold significantly reduces a hydraulic system’s installed footprint and cost through several novel factors in the design. Hydraulic integral control manifolds are shipped assembled and tested to further reduce your installation time and costs.

The manifold may be requested with standard spacing or custom-ordered in aluminum, mild steel or stainless steel. Furthermore, it may be ordered individually or as an assembled system. Contact PacSeal Hydraulics at (714) 529-9495 for more information.

PacSeal Hydraulics’ integral control valve manifolds have been uniquely applied to various industries. See our Integral Control Valve Manifold Gallery for inspiration with your next project.

*USA Patent #9587454

Features

Made in the USA
Face-mounted valve ports with four-bolt attachment for ease of maintenance
Compact design allows for a 50% reduction of installed footprint.
Only one supply and return connection is required, considerably reducing labor and material costs.
KR regulator and hi-lo bypass valve can be mounted on one end, eliminating a separate installation.
Manifold assemblies are shipped assembled and tested.
Pressure rating of 6000 psi

Orientation Options

The spacing and overall dimensions for vertical and horizontal mounted orientation options are shown below.

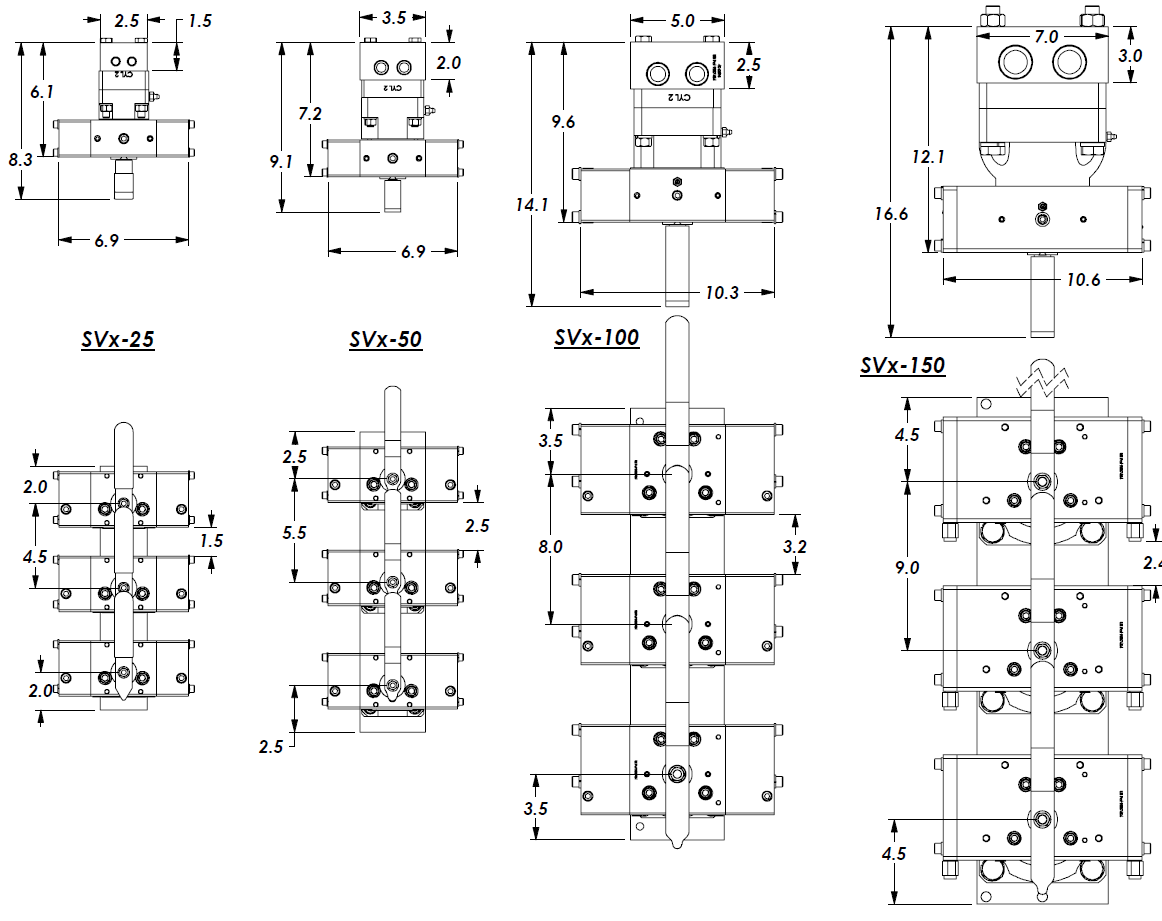

Vertical Mount Options with SVX Valves

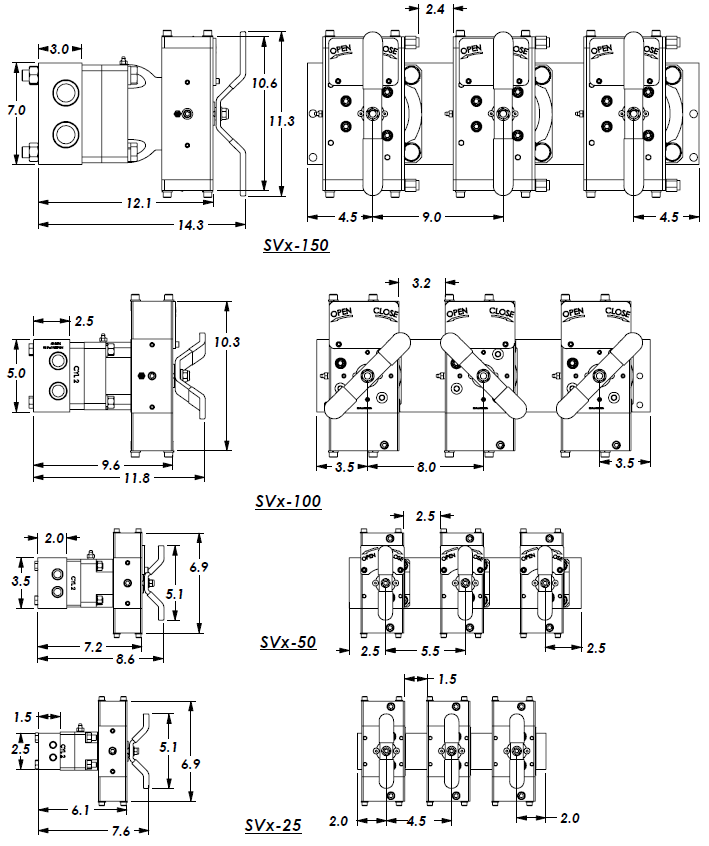

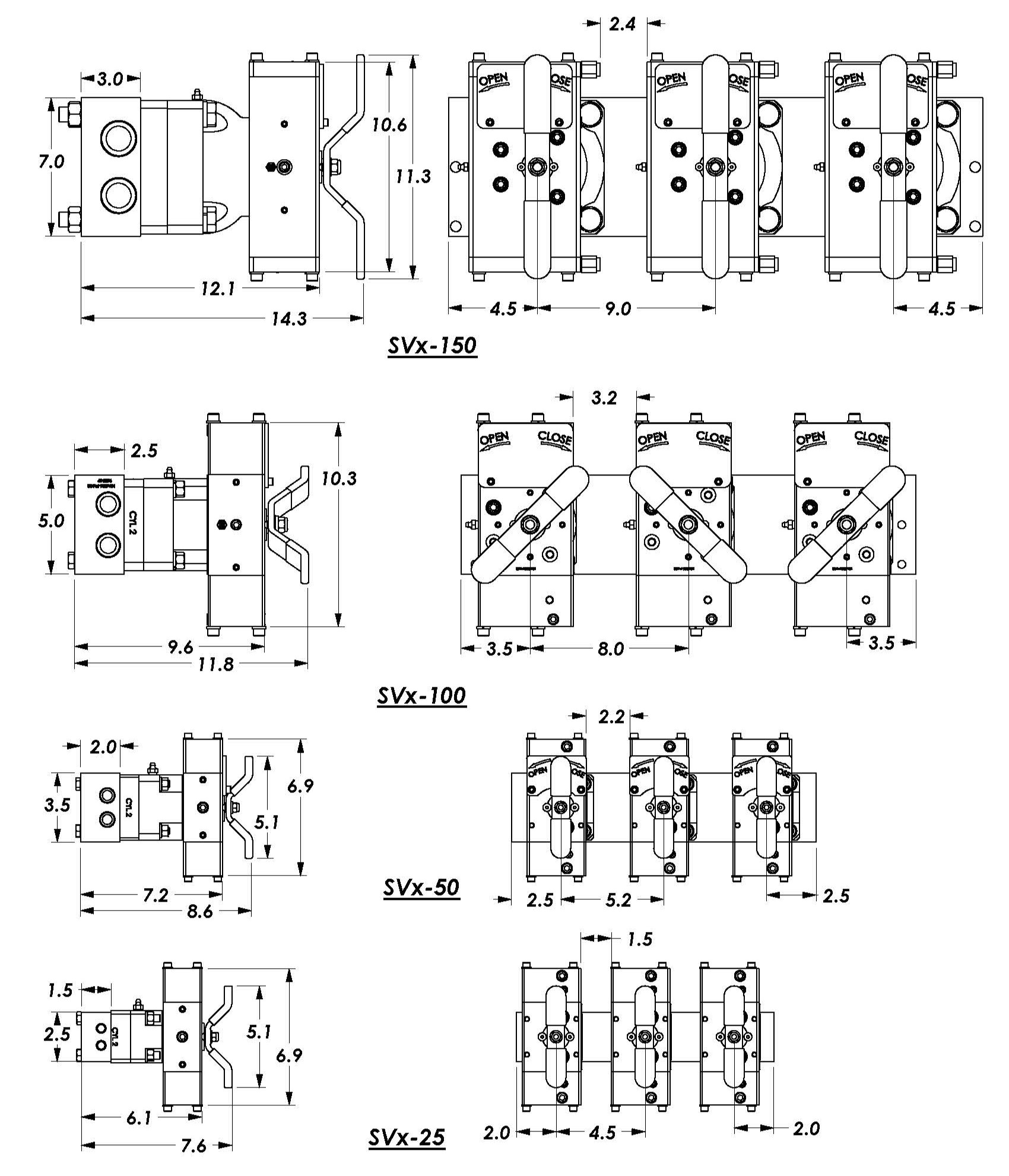

Horizontal Mount Options with SVX Valves

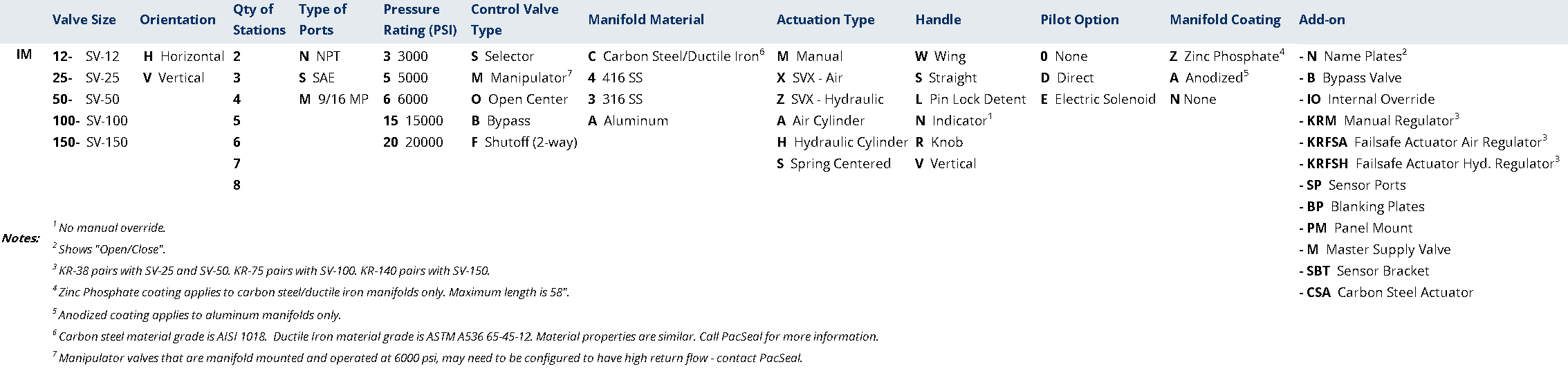

Model Configurator and Ordering Instructions

Use the below configurator to create a model number for an Integral Control Valve Manifold Assembly (i.e. SV-50, Horizontal Orientation, 3 stations, NPT ports, 3000 psi rated, selector valves, carbon steel manifold, air SVX valve actuators, wing handles on the actuators, electric solenoid pilot for the valve actuator, zinc phosphate coating for the manifold, with sensor ports on the manifold is IM50-H3N3SCXWEZ-SP). To receive pricing, simply call PacSeal or use our Request a Quote tool.
