BRACKET MOUNTED ACTUATORS

PacSeal Hydraulics offers pneumatic and hydraulic cylinder actuators that are designed to accompany the range of SV directional control valves or for stand-alone applications. The cylinder actuators are offered in 2- or 3-position operation and pneumatic or hydraulic actuation. The bracket kit with cylinder actuator can easily be assembled to the valve with standard wrench sizes.

If you are in need of a smaller footprint, more diverse programming logic, or need to remotely operate SV valves in harsh/hazardous environments, then please see our blog that compares bracket mounted cylinder actuators with the SVX integral valve actuator.

Drawings and Ordering Information

Purchasing options are stand-alone or with a bracket kit. To order the actuator preassembled to a valve, please visit the SV Directional Control Valve page and use the model configurator to select the actuator positions, actuation type and actuator cylinder orientation.

Installation drawings indicated in blue are available for download.

Part No. Model Positions Bore/Rod Stroke Rating (psi) Valve Compatibility
40-4191 Air Cylinder, AAC-202 2 2 in. x 1/2 in. 2-1/8 in. 250 SV-25/SV-50
40-4256 Air Cylinder, AAC-202 w/ Bracket Kit 2 2 in. x 1/2 in. 2-1/8 in. 250 SV-50
40-2268 Air Cylinder, AAC-203 3 2 in. x 1/2 in.
3 in. x 5/8 in. (center)
2-1/8 in. 250 SV-25/SV-50
40-1412 Hydraulic Cylinder, HAC-202 2 1-1/2 in. X 5/8 in. 2-1/8 in. 1500
40-4221  Hyd. Cylinder, HAC-202 w/ Bracket Kit 2 1-1/2 in. X 5/8 in. 2-1/8 in. 1500
40-3723 Air Cylinder, AAC-302 2 3 in. x 5/8 in. 2-1/8 in. 250 SV-100
40-3802 Air Cylinder, AAC-302 w/ Bracket Kit 2 3 in. x 5/8 in. 2-1/8 in. 250 SV-100
40-2271 Air Cylinder, AAC-303 3 3 in. x 5/8 in.
4 in. x 1 in. (center)
2-1/8 in. 250 SV-100
40-3827 Air Cylinder, AAC-402 2 4 in. x 1 in. 2-1/8 in. 250 SV-150
40-4506 Air Cylinder, AAC-402 w/ Bracket Kit 2 4 in. X 1 in. 2-1/8 in. 250 SV-150
40-4771 Air Cylinder, AAC-402L 2 4 in. x 1 in. 2-1/8 in. 250 SV-200
40-1608 Bracket Kit, AAC-202 N/A N/A N/A N/A SV-50
40-1607 Bracket Kit, AAC-302 N/A N/A N/A N/A SV-100
40-2330 Bracket Kit, AAC-402 N/A N/A N/A N/A SV-150
40-2452 Hydraulic Cylinder, HAC-152 2 1-1/2 in. x 5/8 in. 2-1/8 in. 1500 SV-100
40-2088 Hydraulic Cylinder, HAC-152 w/ Bracket Kit 2 1-1/2 in. x 5/8 in. 2-1/8 in. 1500 SV-100
40-2089 Bracket Kit, HAC-152 N/A N/A N/A N/A SV-100



Nameplate Configurations

Nameplates may be ordered separately or fastened to the valve/actuator assembly. To order the nameplate preassembled to a valve, please visit the SV Directional Control Valve page and use the model configurator to select the nameplate add-on with the applicable code. To order the nameplate separately, simply call PacSeal today or use our Request a Quote tool while referencing the Nameplate part number and description.

Blank Nameplates are ideal for general use and show whether the valve is in the Open or Close position.

SV Blank Nameplates (Code – 0)

Valve Size Part Number
SV-50 40-2250
SV-100 40-0694
SV-150 40-2552

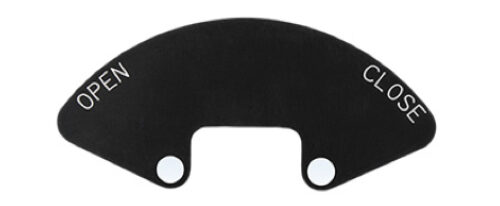

valve nameplate
Blank Nameplate

Other Nameplate options for the SV-100 Valves display the valve’s open and close positions, and function (i.e. Pipe Ram, Shear Ram, Choke Line, etc.).

SV-100 Nameplates

Part No. Nameplate Code
40-0694 Blank 0
40-2485 Blank (Manifold)* 0
40-0440 Pipe Ram 1
40-0441 Shear Ram 2
40-0442 Blind Ram 3
40-0443 Annular 4
40-0444 Choke Line 5
40-0445 Kill Line 6
40-0446 Hi-Lo Bypass 7
40-0693 HCR 8
40-0891 Flow Line 9
*Ideal for tighter spacing on a manifold

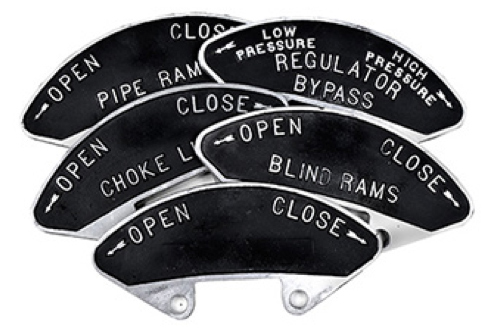

Nameplates
SV-100 nameplates
