The ShearFlo® SV-200 directional control valve ensures negligible internal leakage and contaminant resistant operation for 2” piping. Its modular design allows for various operator and porting options to suit numerous high-pressure and high flow rate, critical service applications. This is our highest flowing valve that is intended to close the largest blow out preventers in the world regardless of the frigidness or harshness of the environment.

The SVX valve with integral actuator* is recommended for reliable remote and long-term cost saving applications in need of a compact footprint. The SVX shares all the benefits and replaceable ShearFlo® sealing components as the SV valve but is integrated with a rack and pinion style actuator with double-acting pistons. Actuation type may be configured for air or hydraulic that is direct or solenoid piloted in 2 or 3 positions or spring centered. For remotely operated hydraulic control systems demanding a small footprint with minimal labor, the patented PacSeal integral control valve manifold can easily be fitted with the SVX.

*USA Patent #9587454


Port Size 2 in. NPT or SAE ORB
Working Pressure (Liquid) 2000 psi
Return Port Pressure 250 psi (Max)1
Proof Pressure 1.5X Working Pressure
Burst Pressure 2X Working Pressure
Cv 50.0
Rated Flow 200 GPM
Temperature Rating -40 to 250°F
Fluid Media Hydraulic Oil or Lubricated Water2
ShearFlo® Sealing Components Hardened Stainless Steel2
Shaft Stainless Steel
Body Stainless Steel
Housing Carbon Steel
Handle, Detent Disc, Spacers and Hardware Plated Carbon Steel
O-rings Buna-N, Viton or EPR
Backup Rings Teflon
1Full rated return port pressure is possible with All Blocked Rotor.

2For water-based media, special alloy seal rings may be required for optimum performance and durability. Contact PacSeal Hydraulics at (714) 529-9495 for details.

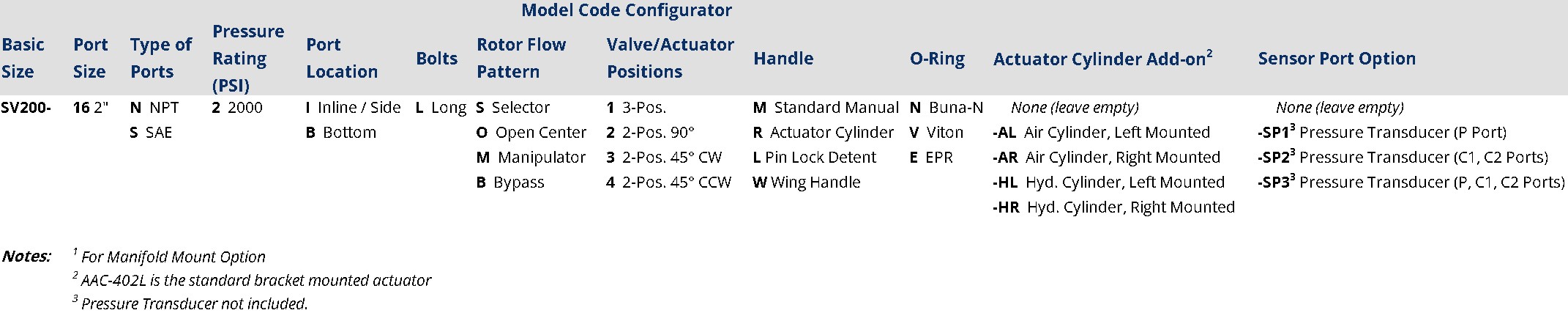

Model Configurator and Ordering Instructions

Use the below configurator to create a model number for an SV-200 Directional Control Valve (i.e. 2000 psi rated, 2” NPT Inline Ported, Selector Rotor SV-200 with 3-position operation and remote handle is SV200-16S2ILS1RN). To receive pricing, simply call PacSeal or use our Request a Quote tool.

For repair kits and other accessories, see links below.

*Common Part Numbers for Reference
Part No. Basic Description Model No.
40-4755 Selector 3 Pos., Inline Ported, 2″ NPT, 2000 psi rated, Remote SV200-16N2ILS1RN
40-4458 Selector 3 Pos., Inline Ported, 2″ SAE, 2000 psi rated, Remote SV200-16S2ILS1RN
*Note: These part numbers are the most commonly purchased and are displayed for reference only. Other models may be configured as requested.
