SV AND SVX-100 DIRECTIONAL CONTROL VALVES

The ShearFlo® SV-100 directional control valve ensures negligible internal leakage and contaminant resistant operation for 1” or 3/4” piping. Its modular design allows for various operator and porting options to suit numerous high-pressure and high flow rate, critical service applications.

The SVX valve with integral actuator* is recommended for reliable remote and long-term cost saving applications in need of a compact footprint. The SVX shares all the benefits and replaceable ShearFlo® sealing components as the SV valve but is integrated with a rack and pinion style actuator with double-acting pistons. Actuation type may be configured for air or hydraulic that is direct or solenoid piloted in 2 or 3 positions or spring centered. For remotely operated hydraulic control systems demanding a small footprint with minimal labor, the patented PacSeal integral control valve manifold can easily be fitted with the SVX.

*USA Patent #9587454





Specifications

General
Port Size 1 in. or 3/4 in. NPT or SAE ORB
Working Pressure (Liquid) 1500, 3000 or 6000 psi
Working Pressure (Gas) 2000 or 4000 psi
Return Port Pressure 250 psi (Max)1
Proof Pressure 1.5X Working Pressure
Burst Pressure 2X Working Pressure
Cv 9.2
Rated Flow 75 GPM
Temperature Rating -40 to 250°F
Fluid Media Hydraulic Oil or Lubricated Water2
Materials
ShearFlo® Sealing Components Hardened Stainless Steel2
Shaft Stainless Steel
Body Stainless Steel
Housing Carbon Steel
Handle, Detent Disc, Spacers and Hardware Plated Carbon Steel
O-rings Buna-N, Viton or EPR
Backup Rings Teflon
1Full rated return port pressure is possible with All Blocked Rotor.

2For water-based media, special alloy seal rings may be required for optimum performance and durability. Contact PacSeal Hydraulics at (714) 529-9495 for details.

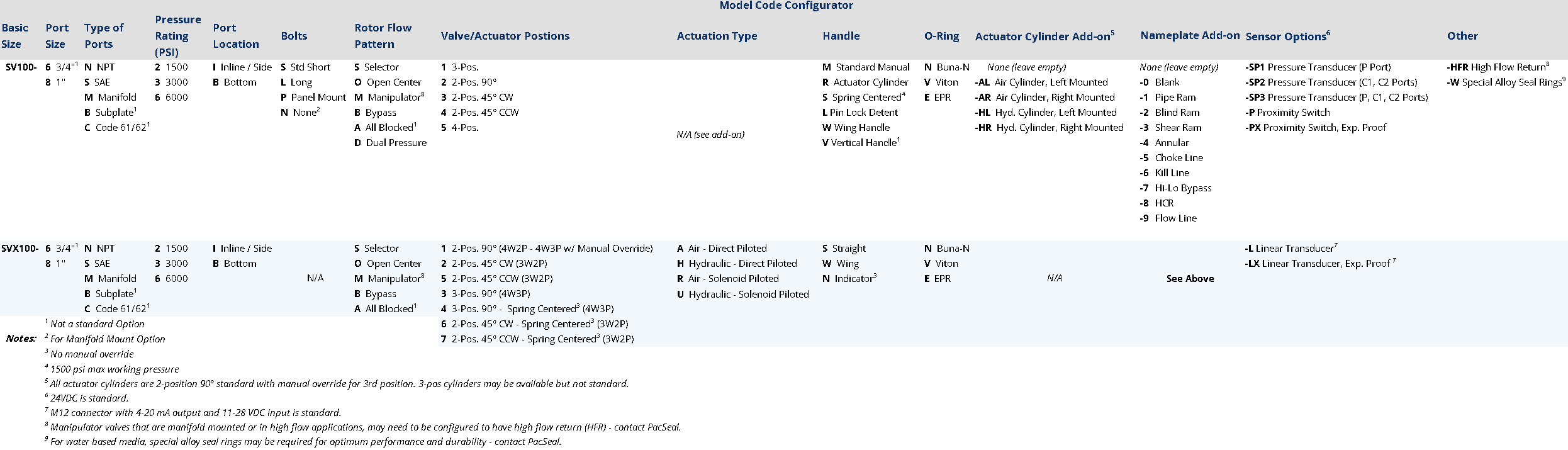

Model Configurator and Ordering Instructions

Use the below configurator to create a model number for an SV-100 Directional Control Valve (i.e.  3000 psi rated, 1” NPT Inline Ported, Selector Rotor SV-100 with 2-position 90° integral air actuator is SVX100-8N3IS1ASN). To receive pricing, simply call PacSeal or use our Request a Quote tool.

Detailed information regarding each option is shown in SV-100 Valve Specifications. For repair kits and other accessories, see links below.

ordering table

1Common Part Numbers for Reference
Part No. Basic Description Model No.
40-1521 Selector 3 Pos., Inline Ported, 1 NPT, 3000 psi rated, Remote SV100-8N3ILS1RN
40-2072 Selector 3 Pos., Inline Ported, 1 NPT, 6000 psi rated, Remote SV100-8N3ILS1RN
40-2402 Selector 3 Pos., Inline Ported, #16 SAE, 3000 psi rated, Remote SV100-8S3ILS1RN
40-1552 Manipulator 3 Pos., Inline Ported, 1 NPT, 3000 psi rated, Remote SV100-8N3ILM1RN
40-1796 Manipulator 3 Pos., Inline Ported, 1 NPT, 6000 psi rated, Remote SV100-8N6ILM1RN
40-2011 Bypass 2 Pos., Inline Ported, 1 NPT, 3000 psi rated, Remote SV100-8N3ILB2RN
40-1775 Bypass 2 Pos., Inline Ported, 1 NPT, 6000 psi rated, Remote SV100-8N6ILB2RN
40-1632 Bypass 3 Pos., Inline Ported, 1 NPT, 3000 psi rated, Remote SV100-8N3ILB1RN
40-2074 Bypass 3 Pos., Inline Ported, 1 NPT, 6000 psi rated, Remote SV100-8N6ILB1RN
40-2023 Open Center 3 Pos., Inline Ported, 1 NPT, 3000 psi rated, Manual SV100-8N3ISO1MN
40-2060 Open Center 3 Pos., Inline Ported, 1 NPT, 6000 psi rated, Remote SV100-8N6ILO1RN
40-15242 Dual Pressure 4 Pos., Inline Ported, 1/2 NPT HP|3/4 NPT LP/Cyl.|1 NPT Ret., 6000 psi Rated, Manual SV100DP-6N3ISD5MN
Notes: 1These part numbers are the most commonly purchased and are displayed for reference only. Other models may be configured as requested.
  2Special Request Only
